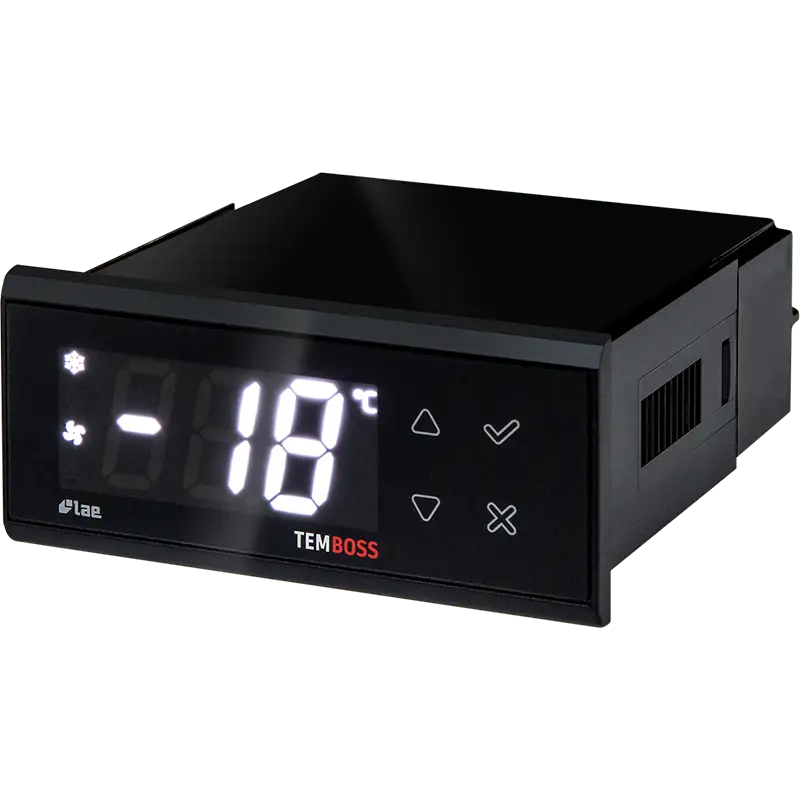

TEMBOSS
SMART SYSTEM SERVICE CONTROLLER
The TEMBOSS is our refrigeration control system – specifically developed for service technicians.
With its 4 predefined setups for refrigerated cabinets, chilled + frozen storage rooms, and even heated cabinets, it is the ideal companion in every service vehicle.
It minimises costs, simplifies work with its PLUG & PLAY functions, and meets all requirements such as high switching capacities, EC fan testing, being approved for propane (R290), and featuring a hygiene display.
Properties
- Plug & Play via 4 master setups
- Approved for propane (R290)
- High switching capacity 15A
- Peak power resistance up to 30A
- Integrated EC fan output
- Hygiene display
- Password protected
Applications
- Small cold rooms
- Refrigerators
- Multideck cabinets
- Service controller
Technical data
| TEMBOSS | |
|---|---|
| Sensor type | NTC10k |
| Standard equipment | 2xNTC10K, SN4B20P |
| Sensor measuring range | -40°C…+105°C |
| Controller regulation range | -50°C…+110°C |
| Resolution | 0.1° |
| Input | 2x digital (configurable) |
| Terminals | Plug-in terminals |
| Output type | |
| Relay 1 / NO contact | 15A |
| Relay 2 / NO contact | 10A |
| Relay 3 / NO contact | 10A |
| Relay 4 / NO contact | EC fan (1A/30A/1ms), |
| Interface | RS485 |
| Power supply | 100Vac … 240Vac |
| Dimensions WxHxD | 77x35x90mm |
| Installation dimensions WxH | 71x29mm |
| Front protection class | IP 55 |
| Certification | EN/UL60335 | IEC/EN 60079/15 | EN61000-6-1 | EN61000-6-3 |
