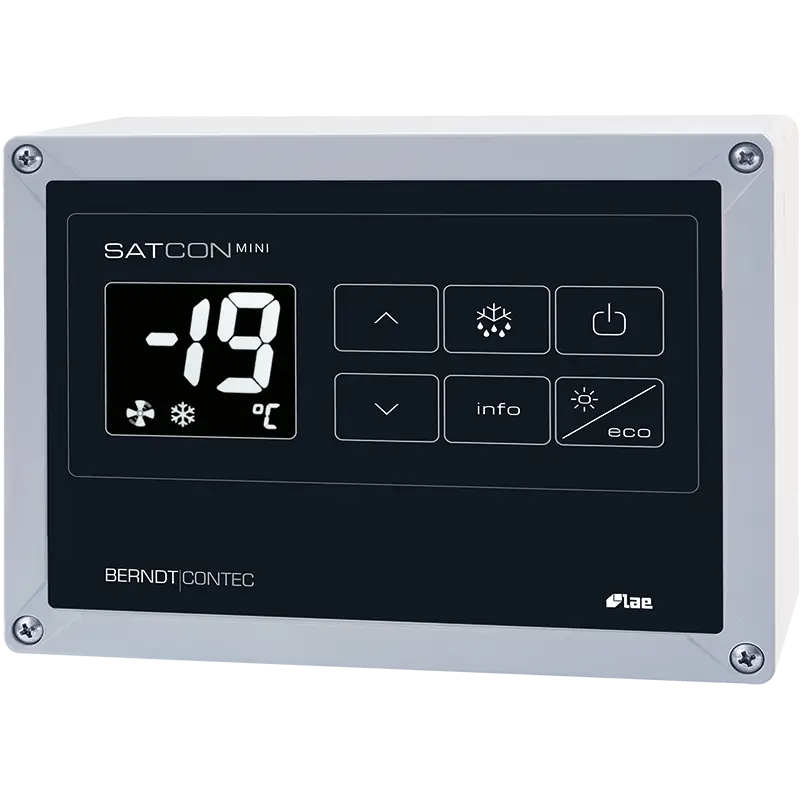

SATCON^MINI

Properties

Control functions such as temperature, defrost, fan operation, and alarm management are implemented via the integrated BR1 – 28C1S5W – 2BC power module.

• Two parameter groups for the optional control of:
  • ECO energy management with improved savings potential
  • Positive and negative temperature cooling
  • Day and night operation
• Integrated time management for:
  • Setpoint changeover (e.g. day/night mode)
  • Activation of AUX outputs (e.g.: lights, valves, pumps etc.)
• Recording according to frozen food regulations possible via sensor T3
• Staggered start-up of 2 compressors
• Two freely programmable AUX outputs (e.g. oil sump heater)
• Intelligent fan control via time or temperature
• Defrost via 6 adjustable times or by interval
• Optimised defrosting of 2 evaporators
• Defrost synchronisation between multiple refrigeration controllers possible
• Light control via digital input possible
• Integration into LAE monitoring system TAB

Applications

• Cold Rooms
• Cold rooms
• Positive and negative temperature systems
• Mobile refrigeration
• Refrigerators
• Commercial kitchens

Advantages

• The SATCON^MINI combines a high performance range with a very compact design.
• The control panel (front overlay) can be customised (from 100 units).
• The high-contrast LCD display ensures the information display is easy to read in any situation.
• The fan relay (16 A) is designed for EC motors.
