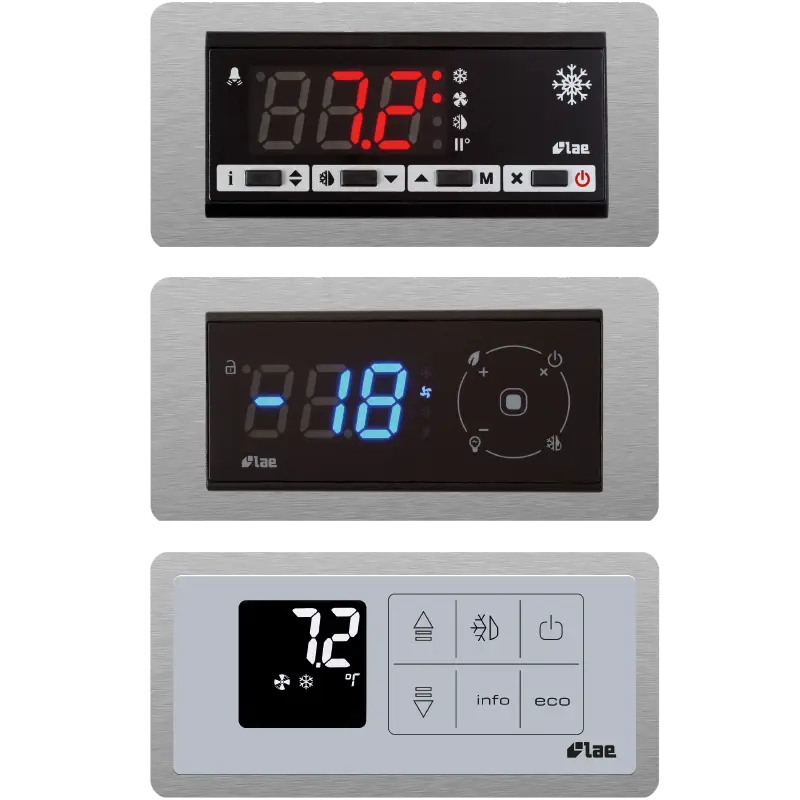

BR1-28 Displays

New technology with exceptional contrast

The new LCD technology not only offers you a plain text display with exceptional contrast, but also gives you a free hand in the design and arrangement of the buttons as well as the design of the overlay. Through these individual options in design and functionality, you not only give your cabinet a very special look but also achieve, thanks to the front overlay bonded directly to the housing, enormous protection against moisture ingress and increase cleaning convenience for an optimal hygiene result due to the flat surface.

Properties

  • Compatible with the latest generation of LAE controllers
  • Individually personalisable to the customer’s functionality and specific design requirements

Applications

  • OEM display
  • Control cabinet systems

Technical data

DU5STU5SDU00 LCD displayMembrane keypad
Dimensions WxHxD77x35x20mm77x35x13mm78x64x15mmfreely selectable
Installation dimensions WxH71x29mm71x29mm57x60mm
Front protection ratingIP55IP55IP67 (only with membrane keypad)IP67
Operating temperature -10…+50°C
LED colourRedBlueBlue
Connection cableFC04-20P01 (on request)
CertificationCE
