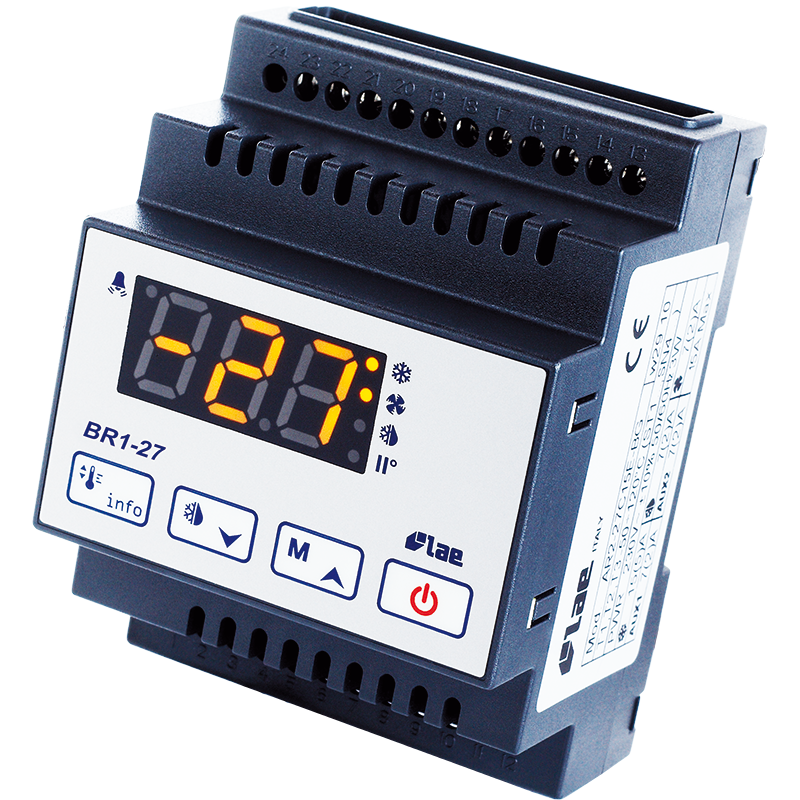

BR1-27
Refrigeration Controller for DIN Rail
The BR1-27 is a real-time defrost controller, ideal for all supermarket and service applications.
With its 6 freely programmable real-time defrost times, which are also easily adjustable in the Info Menu, it is particularly suitable for all applications where time-controlled and optimised energy distribution of the respective system is crucial.
Properties
- Cooling or heating control freely selectable via Relay 1
- FLEXICOLD function for energy saving or control via 2nd setpoint
- Ability to control combination cabinets (chiller / freezer)
- Defrost by regular cycles or real-time
- Defrost timer memory in case of power failure
- Ability to control a second compressor or evaporator
- Absolute or relative temperature alarm control and door alarm
- Temperature / pressure monitoring and condenser maintenance alert
- Light and Standby control via M or ON / OFF button
- Quick programming using ZOT handheld programmer
- RS485 interface for integration into monitoring systems
Functions
- 16A evaporator fan relay, specifically for use with EC motors
- Optimised evaporator fan control via temperature
- 2 parameter groups for optional control of:
- ECO energy management with improved savings potential
- Chiller and freezer
- Day and night operation
- Time-controlled actions via start and stop time, such as:
- 2nd parameter group
- Activation of AUX outputs (e.g.: lights, valves, pumps etc.)
- Defrost synchronisation possible between multiple controllers
- Recording according to TK regulation via sensor T3
- Universal power supply 100…240Vac
Applications
- Control cabinet systems
- Compact refrigeration controls
Technical data
| BR1-27C1S5W-1BC | |
|---|---|
| Sensor type | NTC10k |
| Standard Equipment | 3 x SN4B20P1…3 |
| Sensor Measuring Range | -40 … +105°C |
| Controller Control Range | -50°C … +120°C |
| Resolution | 0.1° |
| Input | Door contact / DI2 |
| Terminals | Screw terminals |
| Relay 1 / N.O. | 16 (4)A Compressor |
| Relay 2 / N.O. | 16 (4)A Evaporator Fan |
| Relay 3 / N.O. | 7 A Defrost |
| Relay 4 / C.O. | 7 A AUX I |
| Relay 5 / N.O. | 7 A AUX II / potential-free |
| Interface | RS485 |
| Real-time | 6 times / buffer battery > 150h |
| Power Supply | 100…230Vac |
| Dimensions WxHxD | 72x94x60mm |
| Mounting Dimension | DIN Rail |
| Front protection class | IP 55 |
| Certification | CE |
