BD1-28CC
Replacement set for 32 series and SSD90
The BD1-28CC is a replacement set to replace the LCD32, AD32, and SSD90 series.
The core of the set is the BD1-28C1S4WH-A, which is used by Cool Compact as an OEM controller in all current units.
Properties

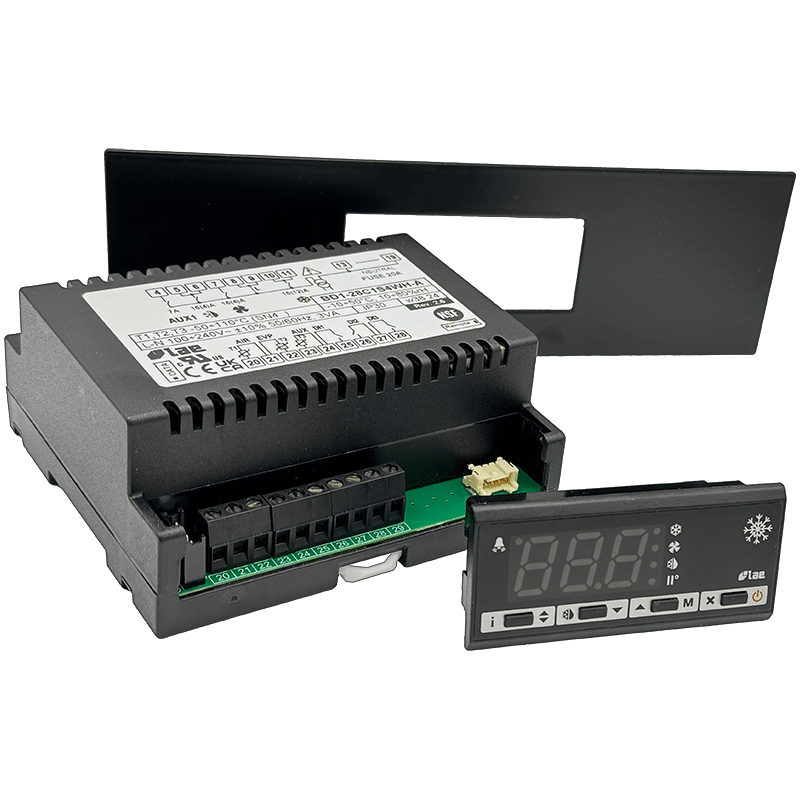

The set consists of:
- 1x BD1-28C1S4WH-A controller
- 2x SN4B20P1…2 sensors
- 1x DU5-S display
- 1x connection cable from display to controller
- 1x stainless steel bezel for mounting the display
Advantages
- Multifunctional application area
- Ideal for service requirements
Technical data
| BD1-28C1S4WH-CC | |
|---|---|
| Sensor type | NTC10k |
| Standard equipment | 2 x SN4K20P1…P2 |
| Sensor measuring range | -40 °C … +105 °C |
| Controller regulation range | -50 °C … +120 °C |
| Resolution | 0.1° |
| Input | Door contact / DI2 |
| Terminals | Screw terminals |
| Output type | |
| Relay 1 / NO contact | 16 (5) A compressor |
| Relay 2 / NO contact | 16 (4) A defrost |
| Relay 3 / NO contact | 7 (2) A evaporator fan |
| Relay 4 / NO contact | 7 (2) A AUX I |
| Interface | RS485 |
| Power supply | 100 … 240 Vac |
| Controller dimensions WxHxD | 169 x 38 x 78 mm |
| Bezel dimensions WxH | 200 x 60 mm |
| Bezel cut-out WxH | 71 x 29 mm |
| Display installation dimensions WxH | 71 x 29 mm |
| Connection cable | 2.0 m |
| Front protection class | IP 54 |
| Certification | CE |
