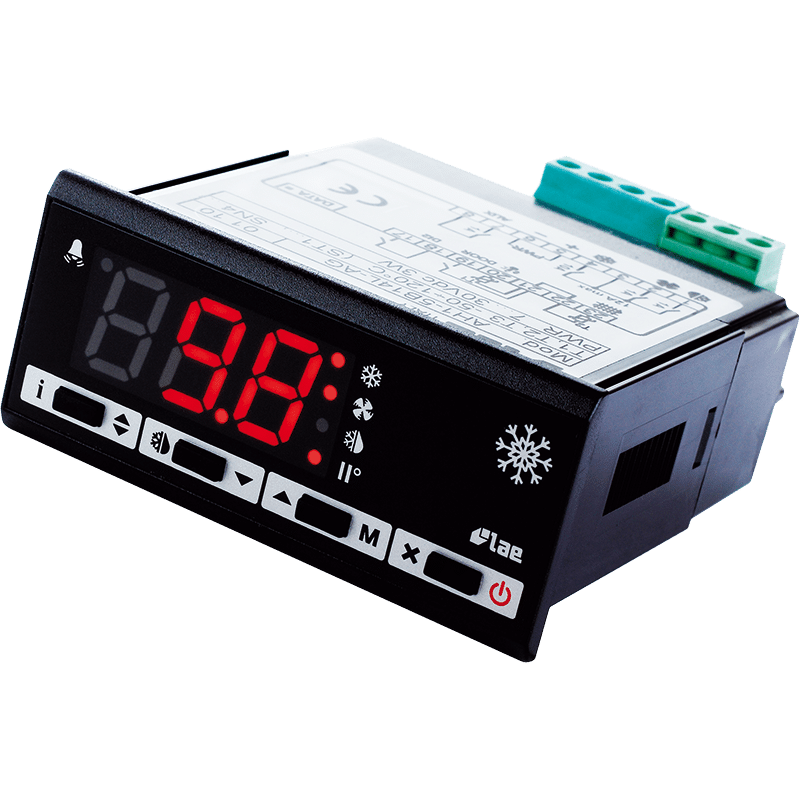

AH1-5
Refrigeration controller with counter-heating function
The AH1-5 is an electronic unit specifically developed for use in refrigerated vehicles.
Due to its variable 7 … 30 Vdc power supply, the AH1-5 can be integrated directly without additional voltage converters.
Additionally, the AH1-5 includes all the functions of a deep-freeze refrigeration controller.
Properties
- Cooling and heating control with neutral zone
- FLEXICOLD function for energy saving or second setpoint switching
- Defrost via timer or remote start
- Option to control a second compressor or evaporator
- Optimised evaporator fan control
- Light and standby control via M or ON / OFF button
- Rapid programming via ZOT-AH1 handheld programming device
- RS485 interface for integration into monitoring systems
Applications
- Small cold rooms
- Refrigerators
- Refrigerated counters
Advantages
- Ideal for refrigerated vehicles due to 7 … 30 Vdc power supply
- Particularly suitable where counter-heating is required due to external influences!
Technical data
| AH1-5C14W-BG | AH1-5B14L-AG | |
|---|---|---|
| Sensor type | NTC10k | NTC10k |
| Standard equipment | 3 x SN4B20P1…3 | 2 x SN4B20P1…2 |
| Sensor measuring range | -40 … +105 °C | -40 … +105 °C |
| Controller control range | -50 °C … +120 °C | -50 °C … +120 °C |
| Resolution | 0.1° | 0.1° |
| Input | Door contact + DI2 (configurable) | Door contact + DI2 (configurable) |
| Terminals | Plug-in terminals | Plug-in terminals |
| Output type | ||
| Relay 1 / NO contact | 12 (5) A compressor | 10 A compressor |
| Relay 2 / NO contact | 7 (2) A evaporator fan | 1 A evaporator fan |
| Relay 3 / NO contact | 7 (2) A defrost | 1 A defrost |
| Relay 4 / NO contact | 7 (2) A AUX | 1 A AUX |
| Interface | RS485 | TTL |
| Power supply | 115 … 230 Vac | 7 … 30 Vdc |
| Dimensions WxHxD | 77x35x90 mm | 77x35x90 mm |
| Installation dimensions WxH | 71×29 mm | 71×29 mm |
| Front protection class | IP 55 | IP 55 |
| Certification | CE | CE |
